ANSCHUTZ 1913 BARRELED ACTION 690MM
1913-U2

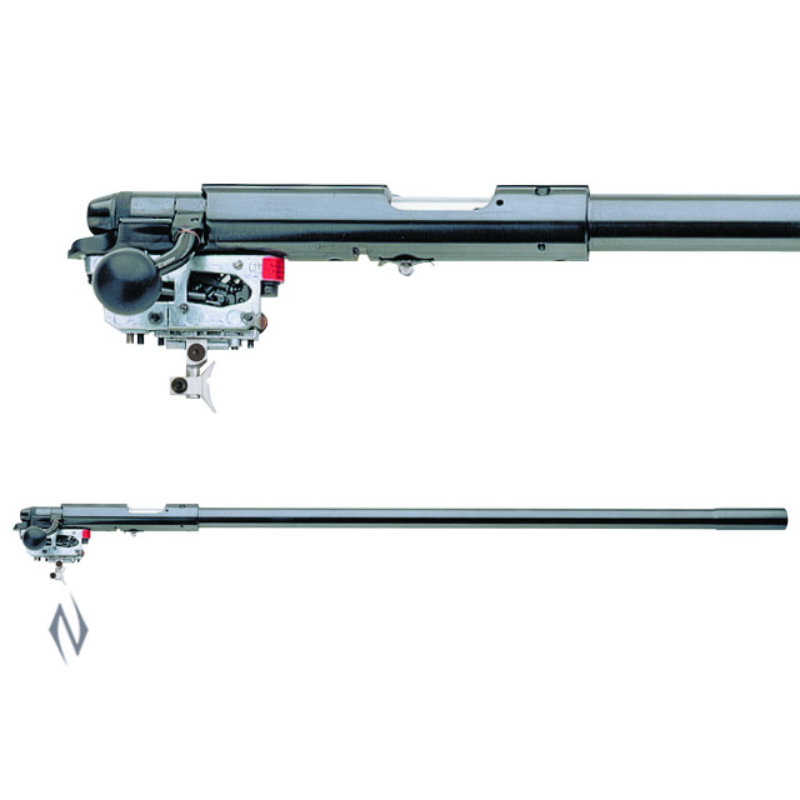

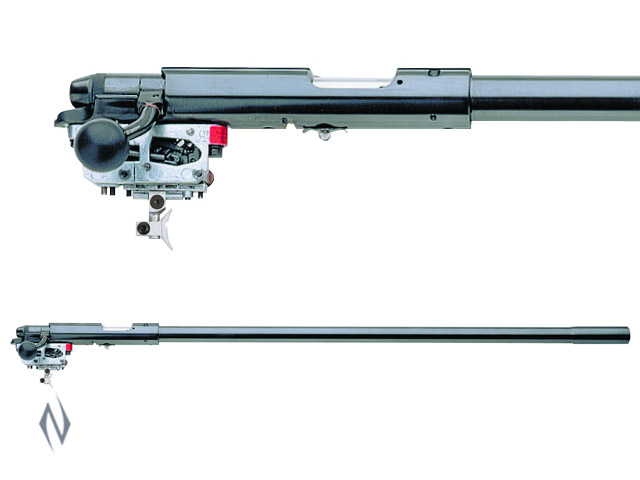

ANSCHUTZ 1913 BARRELED ACTION 690MM
The ANSCHUTZ 54 match action,
which is used in the ANSCHUTZ
series 1710/1712 hunting
repeater,
has dominated national and
international competitions
including the Olympic Games
and the world championships
in the small bore rifle
disciplines. This is a bolt
action, rimfire rifle with cam
cocking and bolt eccentrically
seated in the receiver. It
incorporates 2 action screws.
The bolt movement, as with all
ANSCHUTZ equipment, is
extraordinarily
smooth and effortless. The
bolt face is set back so that
the rim of the cartridge is
fully supported by the bolt
head. The tried and tested
arrangement of claw-extractor
and cartridge holder ensures
reliable case extraction. The
one-piece firing pin has a
defined end stop area to
prevent damage from dry
firing. The receiver is
equipped with an 0.43 inch
wide, ANSCHUTZ Wave Style,
V-block riflescope mounting
dovetail rail. There are
additional drilled and tapped
holes provided for scope
mounting bases and rings. The
independent bolt catch,
mounted on
the left side of the receiver,
limits the movement of the
bolt and protects the trigger.
A gas vent hole on the side
of the extractor groove
directs the gas safely to the
side, in the event of
cartridge failure. The sliding
safety catch on the right hand
side, a recent
improvement, blocks the
trigger sear in the safe
position and simultaneously
lifts the trigger sear and
bolt release latch. The bolt
can also be
opened in the safe position,
allowing unloading the firearm
with the safety engaged.<>
Benchrest barreled action only
(no stock)
<> Suitable for custom stock
build
<> Match 54 action - single
shot
<> 19.6” ultra match barrel
<> Match grade trigger
adjustable to 500g
<> The ultimate in accuracy!
