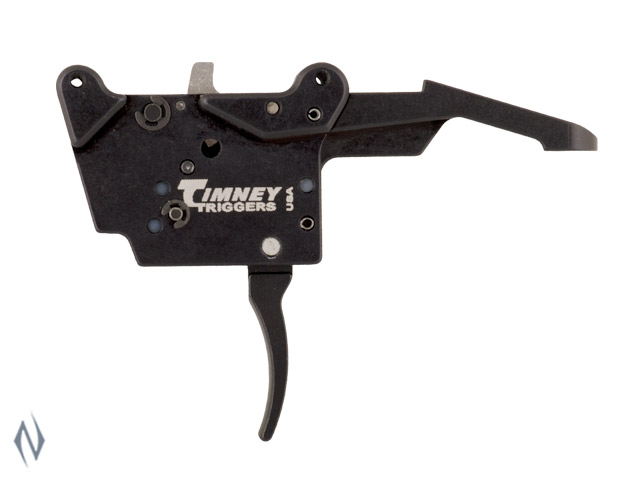

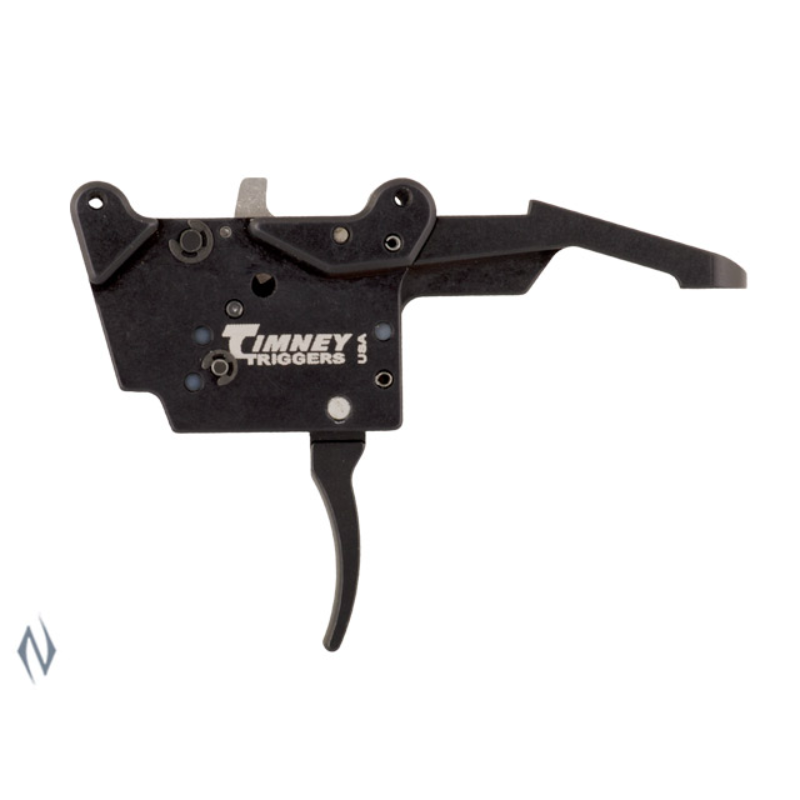

TIMNEY TRIGGER BROWNING X-BOLT
TTXBOLT
TIMNEY TRIGGER BROWNING X-BOLT
>>The Timney Browning X-Bolt
Trigger is fully adjustable
for Sear Engagement (Creep),
over travel (Follow through)
and pull weight. Adjustment of
the pull weight is completed
by turning the pull weight
screw with a 5/64 hex Wrench.
Adjustment of the sear
engagement and overtravel are
completed using a .050 hex
Wrench.
>>Sear Engagement
<>Sear engagement controls the
amount of movement the trigger
has before it breaks. Sear
engagement is custom set at
the Timney Factory and
shouldn't need adjustment.
However, if you want to adjust
your triggers sear engagement
(Creep) the procedure is as
follows:
>>With the rifle unloaded and
cocked. Engage the safety.
turn the sear engagement screw
clockwise until it stops.
Slowly turn it counter
clockwise 1/8 of a turn or one
flat of the .050 hex wrench.
The safety should move freely
but the trigger should not
move when the safety is
engaged.
>>Overtravel
<>Overtravel (Follow Through)
is the distance the trigger
moves after it fires. Timney
Trigger Jedi's adjust the
overtravel to factory
specifications but overtravel
is a matter of preference and
can be increased or decreased
to match your preference. The
over travel screw is on the
front of the housing just
above the pull weight screw.
With the trigger in the fired
position and using a .050 hex
wrench, turn the screw
clockwise until it stops. Once
the screw stops, turn the
screw counter clockwise 1/8 of
a turn or one flat of the hex
wrench. Squeeze the trigger as
you turn the screw to the
desired amount of follow
through. BE CAREFUL if the
overtravel is set too tight
the trigger will not fire.
>>Pull Weight 1.5 - 4 lbs
<>Pull weight is controlled by
the bottom screw on the front
of the housing. Using a 5/64
hex wrench turn the screw
clockwise to increase the pull
weight or counter clockwise to
decrease the pull weight. From
the factory the pull weight is
set at 3lbs.
Key Features
| Available in: | EACH |
| Brand: | Unspecified |
