WHEELER PROFESSIONAL RETICLE LEVEL SYSTEM
WH-PRLS
WHEELER PROFESSIONAL RETICLE LEVEL SYSTEM
>>Technological advances in
today's modern firearms,
ammunition and optics have
enhanced the potential for
long range accuracy. However,
precision mounting and
alignment of your system's
scope is critical to realising
the accuracy. A scope's
reticle must be precisely
aligned with the weapon to
ensure holdover or turret
adjustments for bullet drop
produce true vertical
compensation for point of
impact. If the crosshairs are
canted left or right both
elevation and windage bullet
impact error will occur.
>>The Wheeler Professional
Reticle Levelling System is a
precision tool and technique
designed to allow a scope to
be perfectly levelled on any
firearm with ease. CNC
machining, factory adjusted
calibration set screws,
anodised aluminium
construction and protective
moulded case put this
instrument in a class of its
own.

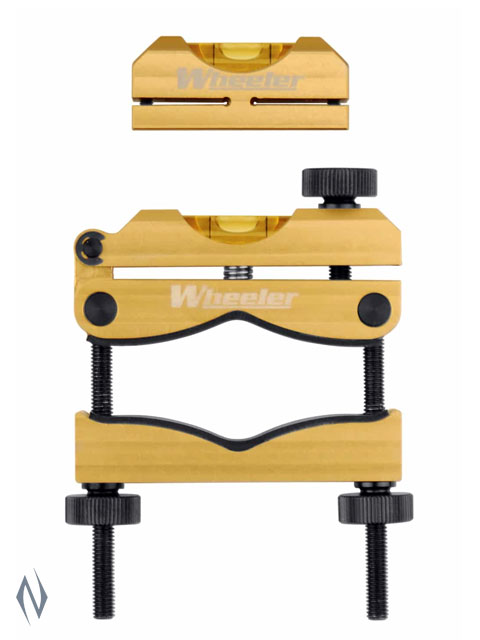

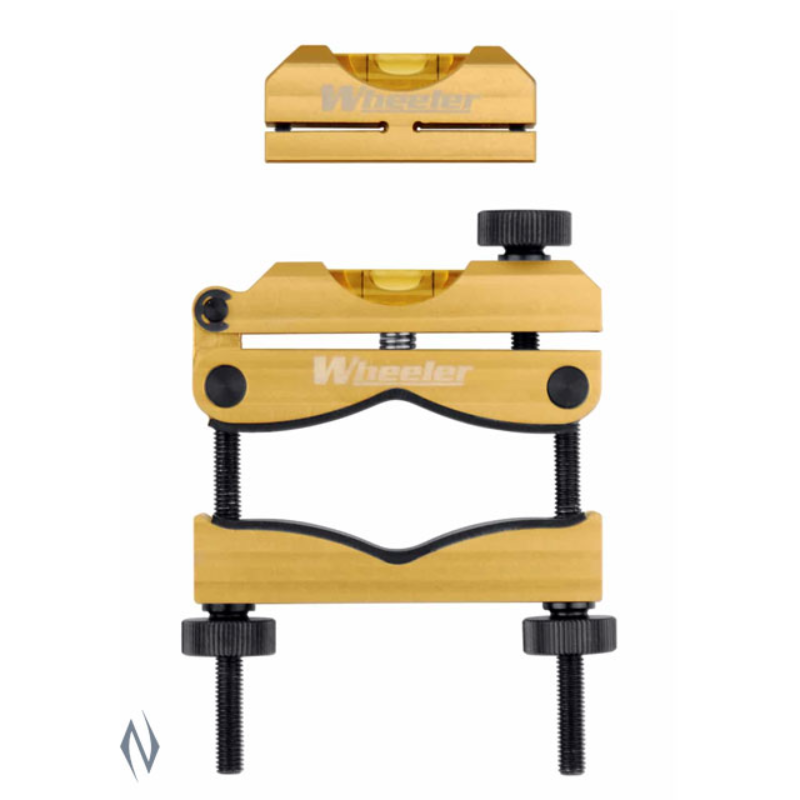

>>The system is comprised of
two machined aluminium level
housings calibrated to their
integrated levels. The Barrel
Clamp Level is attached to the
guns barrel while the smaller
Reference Level is placed on
scope base, bottom half of a
ring or other flat surface
perpendicular to the vertical
axis of the gun. The gun is
then rotated until the
Reference Level is aligned.
The tuning adjustment knob on
the Barrel Clamp Level is then
turned until its level is
centred to match the Reference
Level. At this point the
Barrel Clamp Level is
calibrated to the gun’s axis.
The Scope can be installed
loosely, and the Reference
Level placed on top of the
scope’s turret cap. The scope
is rotated until the Reference
Level is aligned with the
Barrel Clamp Level and then
simply secured in place.
>>The Wheeler PRLS is the most
effective instrument available
for precision scope alignment.
>>Features:
<>Maximise accuracy potential
<>Precision tool for scope
reticle alignment
<>Factory calibrated reference
level
<>Tuneable barrel clamp level
<>CNC machined aluminium level
housings
<>Protective storage case
Key Features
| Available in: | EACH |
| Brand: | Unspecified |
